Dimensions are only the starting point

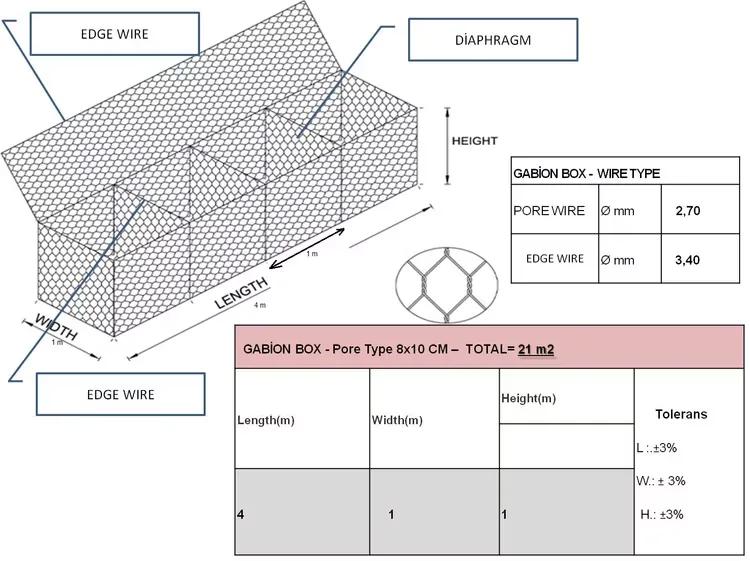

A gabion is described by length, width and height; a mattress by length, width and thickness. Several sizes are often used on one project. Confirm whether the dimensions are for the finished filled unit or the nominal supplied unit, and note any tolerances in your specification.
Specification checklist
| Parameter | What to state in your enquiry | Our confirmed offering |
|---|---|---|
| Unit dimensions | Length x width x height per unit, in one consistent unit system, with the quantity of each size | To be confirmed |
| Mesh type | Woven (double-twisted hexagonal) or welded mesh, as required by the project specification | To be confirmed |
| Mesh opening | Opening size as given in the BOQ or drawing | To be confirmed |
| Wire diameter | Mesh wire, selvedge/edge wire and lacing wire diameters as specified | To be confirmed |
| Coating | Zinc (GI) or PVC-coated over zinc, with the coating requirement or standard named in your specification | To be confirmed |
| Diaphragms and accessories | Internal diaphragms, lacing wire, stiffeners, corner or connection items | To be confirmed |
| Packing and delivery | Delivery point, PIN code, unloading arrangement and required delivery window | To be confirmed |
| Quantity | Number of units per size and, if specified, total volume or area | To be confirmed |
Mesh and wire terms explained
- Woven (double-twisted hexagonal) mesh - wires twisted in pairs to form hexagonal openings.
- Welded mesh - wires welded at intersections to form square or rectangular openings.
- GI - zinc-coated steel wire. PVC-coated - PVC over zinc-coated wire.
- Lacing wire - the wire used to join panels and units on site.
- Diaphragm - an internal panel that divides a unit into cells.
Which mesh type and coating are available from us is confirmed in the written quotation. Ask your designer to confirm the product specification if you are unsure.
How to write a gabion enquiry line
Use one consistent unit system and one line per size. A model format is shown below; replace the bracketed values with the figures from your BOQ.
[Length] x [Width] x [Height] [unit] | Qty: [number] | Mesh: [type, opening] | Wire: [diameters] | Coating: [GI / PVC] | Accessories: [list] | Delivery: [site, PIN code]
Attach drawings when you have stepped walls, non-standard panels or site-specific arrangements.
Related pages
See GI gabion boxes, PVC-coated gabion boxes, gabion mattress and bulk orders.
Frequently asked questions
Which gabion size should I choose?
Size is set by the structure design and stone size, not by price. Use the dimensions in your drawing or BOQ.
Do I need a technical data sheet?
If your specification requires one, say so in the enquiry and we will confirm what documentation can be provided.
Next step
Use the quotation form or contact page and include the drawing or BOQ, quantity, specification and site location. Where details are not final, say so - we will tell you what is needed to prepare a proper quotation.
